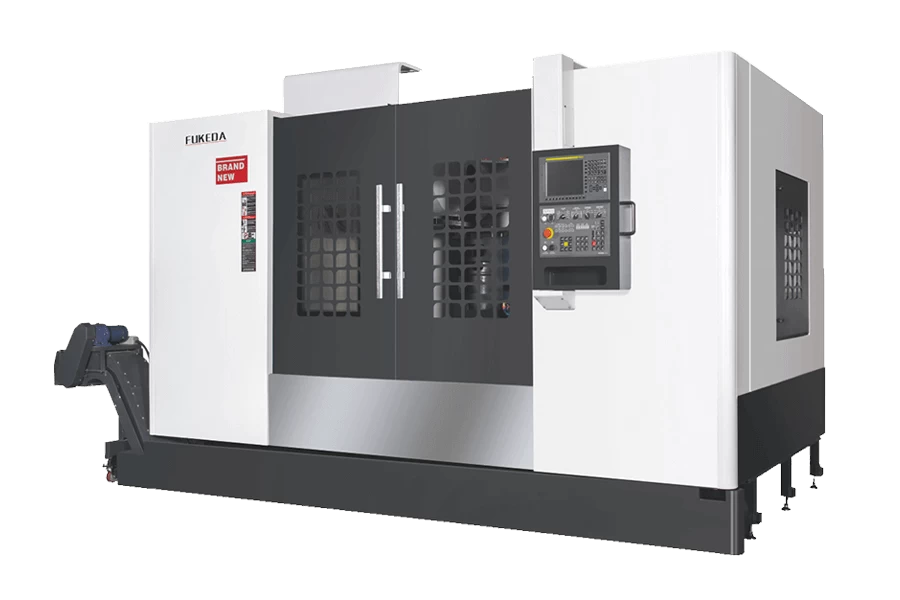

Vertical Machining Center
FV-1200A
The best spindle configuration, the spindle center line is close to the z-axis slide rail, greatly reducing the influence of thermal displacement and cutting moment can produce bending deformation, to ensure the best accuracy. The whole machine structure has excellent strength and stability. Ysxai uses four heavy-duty roller guide rail designs so that the work table has heavy cutting stability.
INQUIRE|
Item Model
|
FV-1200A | Unit | |||
|---|---|---|---|---|---|
| Process | |||||
| X axis stroke | 1200 | mm | |||
| Y axis stroke | 700 | mm | |||
| Z axis stroke | 700 | mm | |||
| Distance from spindle nose to workbench |
175-875 | mm | |||
| Workbench | |||||
| Workbench area | 1400×700 | mm | |||
| Maximum load of workbench | 1300 | kgf | |||
| T slot (W x NO. x P) | 18 x 5 ×145 | mm | |||
| Spindle | |||||
| Spindle taper | BT40 | - | |||
| Speed of spindle | 8000 | rpm | |||
| Spindle power | 11/15 | kW | |||
| Feed | |||||
| X/Y/Z axis fast moving | 24/24/24 | m/min | |||
| X/Y axis rail width | 45/45 | mm | |||
| Automatic Tool Changing | |||||
| Number of tools | 24/30 | pcs | |||
| Maximum tool weight | 8 | kg | |||
| Maximum tool length | 300 | mm | |||
| Maximum tool diameter | Φ78 | mm | |||
| Maximum tool diameter (Without adjacent tool) |
Φ120 | mm | |||
| Way of changing tool | Knife arm type | - | |||
| Precision | |||||
| Positioning accuracy | 0.012 | mm | |||
| Repeated positioning accuracy | 0.008 | mm | |||
| Others | |||||
| Machine dimension (LxWxH) | 3500x2900x2800 | mm | |||
| Machine weight (approx.) | 9500 | kg | |||
| Pneumatic supply | 0.6~0.8 | bar | |||
| CP capacity of electric power | 30 | kVA | |||
| Numerical control system | FANUC 0i-MF PLUS/MITSUBISHI-M80B/SYNTEC-22MA/SIEMENS-828D/840D | - | |||
Due to our continuous development and improvement, the above specifications and design are subject to change without prior notice.
Perfect combination of high speed and high rigidity
The processing range is larger than the general model, and the rigidity of the machine tool is greatly enhanced so that the machine tool can absorb the vibration of re-cutting more effectively during processing, so as to improve the accuracy and smoothness of the workpiece. Through the analysis of the element structure, a large number of reinforcing bars are used in the casting to optimize the mechanical structure and ensure the rigidity and stability of the whole machine.
The casting structure adopts the strengthening design, the casting wal thickness is reasonable, the configuration of the strengthening rib is careful, to build a large rigidity and high precision.
Large diameter precision ball screw, driven by servo motor straight knot, supported by special bearings for ball screw, power can be effectively transmitted.
The driving torque is reasonable enough to bear the heavy cutting load.
The ergonomic panel design makes it easy and comfortable to operate.
Used for efficient heavy-cutting processing, mass production of mechanical vehicle parts, precision parts, mold processing, and production.
Tool change system
Tool change system
24T arm cutter library, controlled by high precision CAM drive mechanism. is solid. durable and no need for aftercare. Arbitrary position knife selection ability to ensure fast, smooth, and reliable operation
High speed and high precision rail
High speed and high precision rail
The Y-axis adopts four 55mm column damask rails with large span columns, the heavy cutting and bearing capacity of a hard rail machine, at the same time it has high-speed, high precision, long file special paste
Chip removal system design
Chip removal system design
The design of a double spiral chain plate chip discharging machine can be used to collect all kinds of roll, block, and strip chips, which can effectively improve the operating environment, reduce labor intensity, and improve the degree of automation of the whole machine
Low center of gravity base design
Low center of gravity base design
The machine body adopts the design of a low center of gravity, which effectively reduces the center of gravity of the machine tool and further enhances the stability of the high-speed movement of the moving part of the machine tool. The high-strength column and the bed with a low center of gravity build the foundation of the machine tool's high performance. Four-rail base provides the best support and stability for the whole machine
High Quality Gearbox (Optional)
All gears are made of alloy steel, hardened steel, and JIS-0 precision grinding material. Provide optimal high precision and low noise characteristics.
The internal bearings of the gearbox are cooled by forced circulation. The perfect cooling system can reduce the heat to a minimum degree, and ensure the machining accuracy.
Full-tooth high and low two-stage variable speed driving spindle box, with wide speed range and high horsepower, can bear heavy cutting load and high-speed processing.
Spindle Center Outlet
Add the spindle center water system, cutting fluid through the spindle center, ejected by the tooltip, can directly act on the work-piece and tool cutting edge, the heat source of the cutting away, while the high-pressure cutting fluid can remove the work-piece surface residue to ensure processing quality, suitable for deep hole processing parts
Grating Scale or Optical Linear Scale
Three-axis grating ruler can be added to improve the accuracy of processing, reduce the error caused by environmental temperature changes, can produce more precise products
Multidimensional Machining
With the innovation of technology, the current D3 processing has been difficult to meet the following processing needs, our company added the fourth axis and the fifth axis on the basis of the three axis, to solve the multi-angle processing difficulties and improve production efficiency
Automatic Tool Measuring Series
According to the tool length value, diameter, and wear detection. TS27R inputs the controller automatically for compensation after measuring and is easy to operate
Chip Conveyor
